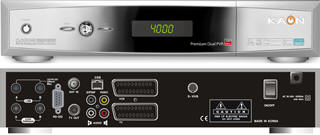

Free To Air PVR/Satellite Receiver


KSC-N550H2

FEATURES & SPECIFICATIONS
  Kaon Premium DUAL PVR Satellite Receiver Dual PVR MPEG TS A/V Decoding
  2 Tuner PVR ( Personal Video Recorder ) Tuner 2 Decoding & Recording Transport Stream MPEG-2 ISO/IEC 13818
  Simultaneous six channel record and one playback Main Processor MIPS ( 220Mips ) Profile Level 2 of MPEG-2 MP@ML [PIP]
  Simultaneous time-shifting and dual recording Modulation QPSK Input Rate Max. 81 Mbit/s
  Dual decoding from live stream or recorded stream SDRAM 64 MBytes Aspect Ratio 4:3, 16:9, Letter Box
  Stripping EPG with Now, Next and Full (7 days) DiSEqC Control 1.2 & USALS Available Video Resolution 720*576[PAL] / 720*480[NTSC]
  Teletext and Txt Subtitles Flash Memory 4 MBytes Audio Decoding MPEG/Musicam Layer 1/2 & 3
  MP3 (MPEG-1 Layer-3) Transfer and play via USB2.0 Transport stream ISO/IEC 13818-1 MPEG-2 Audio Mode Mono / Left / Right / Stereo
  PIP (Picture In Picture) Adjustable sizes and location HDD Size 5.2inch of 80gb or more Sampling Rate 32, 44.1 and 48KHz
  Powerful & Stable trick mode Profile Level MP@ML
  Games PCMCIA 2 slot of DVB-CI A/V Data Input/Output


AV Output RF-C, 2x SCART, RCA, S-VHS TV-SCART Video CVBS/S-VIDEO/RGB output
  Serial IF USB 2.0, RS232 (D9)   Audio L/R output
  Audio Out S/PDIF VCR SCART Video CVBS output
      Audio L/R output
  Tuner & Channel     Video CVBS/S-VIDEO/RGB input bypass
  2 Tuner Decoding & Recording ( or Decoding )   Audio L/R input bypass
  Input Connector F-Type, IEC 169-24 Female S-Video Video S-VIDEO output
  Signal Level -25 to -65 dBm RCA A/V Video CVBS output
  LNB Power & Verticle: +13.5V, Horizontal: +18V   Audio L/R output
    Polarisation Current Max 500mA, Overload protection S/PDIF Digital Audio or Dolby AC-3 Bitstream Output
  Download Brochure 22KHz Tone Frequency: 22±1KHz   Transfer rate 115.2Kbps
      Amplitude: 0.6±0.2V RS-232 9 pin D-sub Type
    DiSEqC Control Version 1.2, USALS Available   USB 2.0
    Demodulation QPSK
    Input Symbol rate 2-45 Ms/s Convolution Code Rate Conditional Access System
      1/2, 2/3, 3/4, 5/6, 7/8 and Auto PCMCIA 2 Slots for DVB-CI

    RF-Modulator   Physical Specifications
    PLL Type CH21~69 for the Demodulation Size [W*H*D] 340*60*265 [mm]
    TV Standard PAL BG/I/DK selectable Net Weight 3.5Kg
    RF Connector 75 Ohms, 169-2, Male/Female Operation Temperature 0° ~ 50°C
    Frequency Range UHF : 470~860MHz Storage Temperature -20° ~ 60°

    Warranty 12 Months
