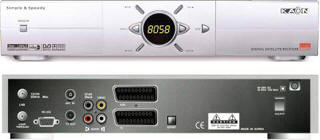

Free To Air Satellite Receiver




KSC-570

FEATURES & SPECIFICATIONS

  Kaon Free To Air Satellite Receiver with Common Interface Tuner & Channel RF-Modulator
  Supports Freeview New Zealand programming and channel numbers Input Connector F-Type, IEC 169-24, Female PLL type CH 21~69 for the Demodulation
  Automatically finds new channels without scanning Signal Level -25 to -65dBm TV Standard PAL B/G/I/D/K selectable
  OSD Teletext, DVB Subtitle Supportable LNB Power & Vertical: +13.5V RF Connector 75 Ohms, 169-2, Male-Female
  Various Games included Polarization Horizontal: +18V Frequency Range UHF: 470~860MHz
  USALS and DiSEqC 1.2 Available   Current Max 500ma
  Automatic Demonstration and Usage Guide   Overload Protection Power Supply
  Fast Auto-Programming & Easy Installation 22KHz Tone Frequency: 22±1KHz Input Voltage AC 90 to 250V, 50/60Hz
  Stripping EPG with Now, Next and Full (7 Days)   Amplitude: 0.6±0.2v Power Consumption Max. 42W
  Channel Sorting for CAS, Lock, Name and Network DiSEqC Control Version 1.2 USALS™ Available Protection Separate Internal Fuse
  S/PDIF Dolby Digital output Demodulation QPSK Type SMPS
  Input Symbol Rate 2-45 Ms/s Convolutional Code Rate
    1/2, 2/3, 3/4, 5/6, 7/8 and Auto Physical Specification
      Size (W*H*D) 340 * 60 * 250(mm)
  MPEG TS A/V Decoding Net Weight 2.5kg
  Transport Stream MPEG-2 ISO/IEC 13818 Operating Temperature 0°C~50°C
    Transport stream Specification Storage Temperature -20°C~60°C
  Profile Level MPEG-2 MP@ML
  Input Rate Max. 81 Mbit/s Optional Functions
  Aspect Ratio 4:3, 16:9 Embedded CAS Conax, Nagravision, NDS, Irdeto
    Video Resolution 720*576 PVR 40 or 60 Gb HDD
    Audio Decoding MPEG-2 Layer I & II SW Upload Via OTA (Over-To-Air)
  How to set up a new satellite? Audio Mode Mono / Left / Right / Stereo l
  How to add a transponder? Sampling Rate 32,44.1 and 48KHz Warranty 2 Years ( from 1-Dec-2006 )
  How to edit a transponder? Main Processor STi 5518
  How to scan a transponder for channels? Flash Memory 2 MByte (2 MByte)
  Instructions TVNZ transponder polarity change Program DRAM 16 MByte (8 MByte)
  New remote control layout E˛PROM 256 Byte

    A/V & Data In/Out
    Video RCA/Cinch, Video Output (CVBS) SCART
    Audio L/R RCA/Cinch Volume & Mute Control
      (Resolution: 20 bits DAC, Max 2Vrms)
      S/PDIF of Dolby Digital Bitstream Out
    RS-232C Transfer rate 115Kbps, 9 pin D-Sub Type
